ARB DRAWER KITCHEN 1255 COMPLETE SINGLE

SLIDE KITCHEN SPECIFICATIONS

DIMENSIONS

Exterior: 1355mm (l) x 500mm (w) x 310mm (h)
Interior: 1250mm (l) x 485mm (w) x 190mm (h)
Benchtop: 1250mm (l) x 485mm (w)
Internal Small Drawer: 450mm (d) x 345mm (w) x 145mm (h)
Optional Replacement Drawer: 1210mm (d) x 445mm (w) x 145mm (h)
WEIGHT Approximately ~89kg

STOVE SPECIFICATIONS

Stove-top: Thetford Argent 3 Burner MK3 stove. Made in England, EU approved
Burners: 2x 1.5kW and 1x 2.5kW. (18,767 BTU)
Quick connect: EU approved hose 2m with approved regulator
Suitable gas: LPG and ULPG
Load rating: 20kg

COLLAPSIBLE SINK SPECIFICATIONS

12L capacity
Sink platform is preloaded to handle up to 15kg of weight
Pop up sink rated to up to 90°C

BENCHTOP SPECIFICATIONS

304 stainless steel kitchen-grade
Main stainless surface can hold a maximum weight of 30kg spread evenly on top

CAMP COMPLETE

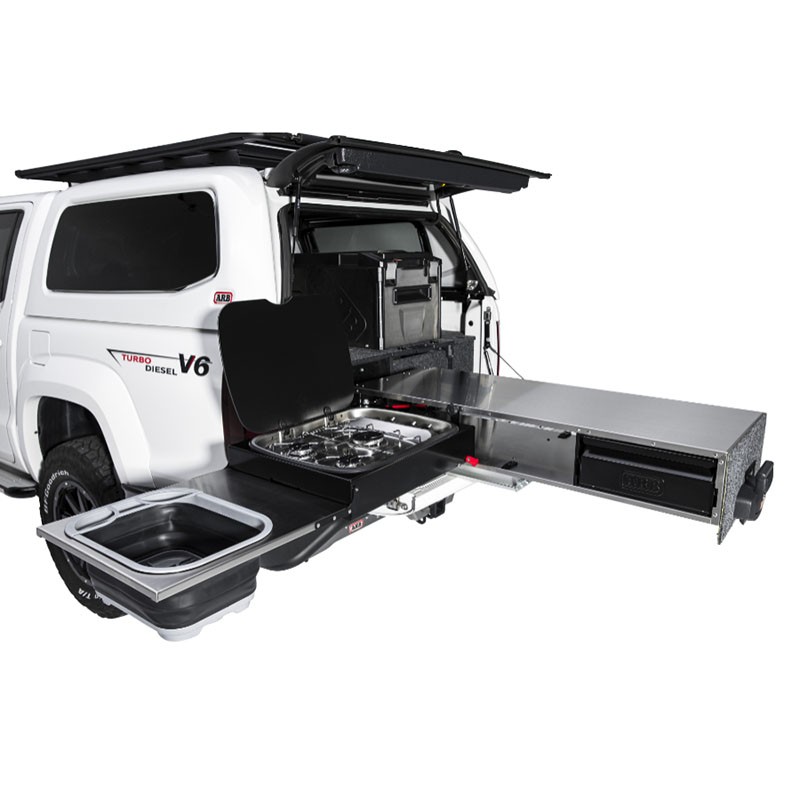

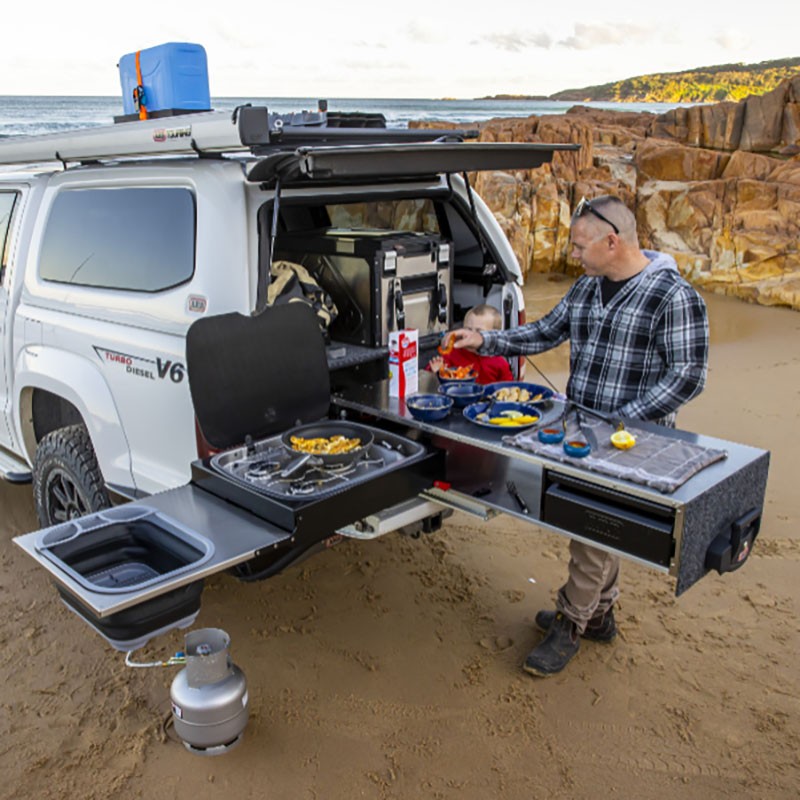

Whether at the campsite, the local park, the job site, or even the side of the road, enjoy the ease of a fully-functioning kitchen, wherever you and your 4WD are headed.

Featuring a three-burner stove, sink, and ample bench space, ARB’s fully freestanding Slide Kitchen can be set up in as little as 15 seconds, offering practicality for any tourer. Beyond being one of the most practical features for any 4WD, the Slide Kitchen boasts an innovative user-friendly design.

THE DESIGN

One of the most practical additions to any serious tourer, the ARB Slide Kitchen boasts some great design form which really enhances the user experience.

COMPLETE VEHICLE INTEGRATION

Designed to integrate with ARB drawer installations, the Slide Kitchen features the same dimensions as ARB’s full height 1045mm deep large wagon modular drawer profile. The Slide Kitchen is designed to fit right in alongside ARB’s roller (RF), mid-height (RFH) or full-height (RD/RDRF) large wagon drawers.

EASY SETUP AND OPERATION

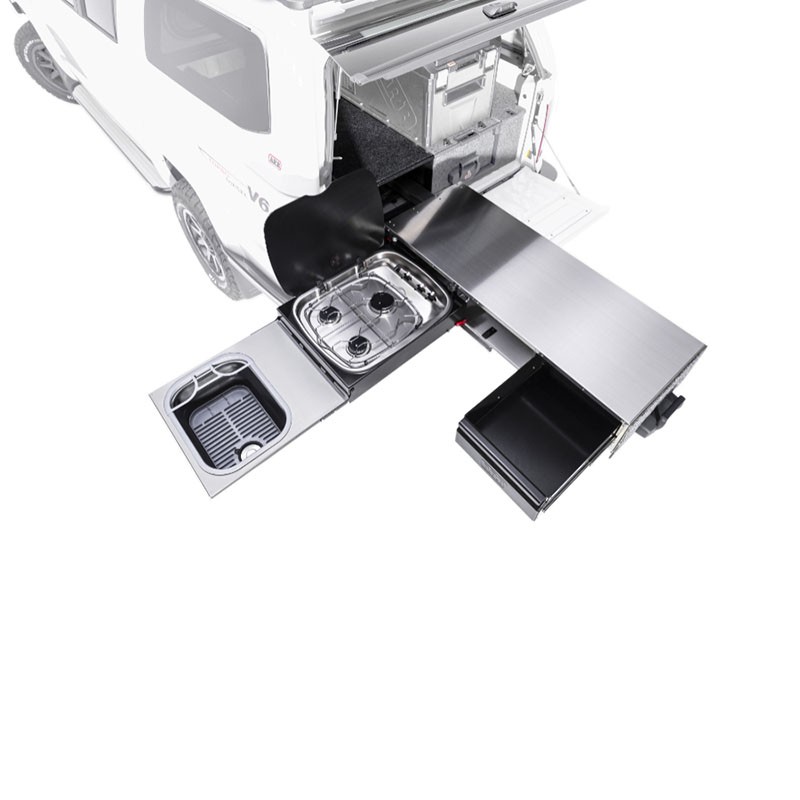

The Wagon Slide Kitchen takes only 15 seconds to set up or pack up! Simply pull the mechanical latch and roll the stainless steel bench out. Once fully extended, the bench locks into place, and you can choose to operate the kitchen as as a simple bench top and drawer, or keep sliding out the stainless steel top to reveal the three-burner stove. For the full setup, simply clip on the sink and spice rack and utilise the full Slide Kitchen.

FULLY RETRACTABLE AND COMPLETELY FREESTANDING

The fully retractable over extension roller design provides complete clearance of the vehicle. Once the bench is fully extended and locked into place, it sits completely freestanding, without need for a support leg.

STAINLESS STEEL BENCHTOP & UTENSILS DRAWER

The perfect space for meal preparation, the kitchen-grade stainless steel benchtop also features a handy spice rack for storing condiments and hooks to hang tea towels or utensils. Under the slide-out bench, the aluminium powder-coated utensils drawer is lightweight and offers plenty of space to store your ‘must-have’ cooking utensils and kitchen essentials.

BENCHTOP

Measures 1250mm (l) x 485mm (w)
304-grade stainless steel
Locks into place when fully extended
Hairline stainless pattern matches the stove finish
Engineered alloy extruded over extension runners, provides support freestanding
Main stainless surface can hold a maximum weight of 30kg spread evenly on top
All locking components highlighted in red to help guide setup

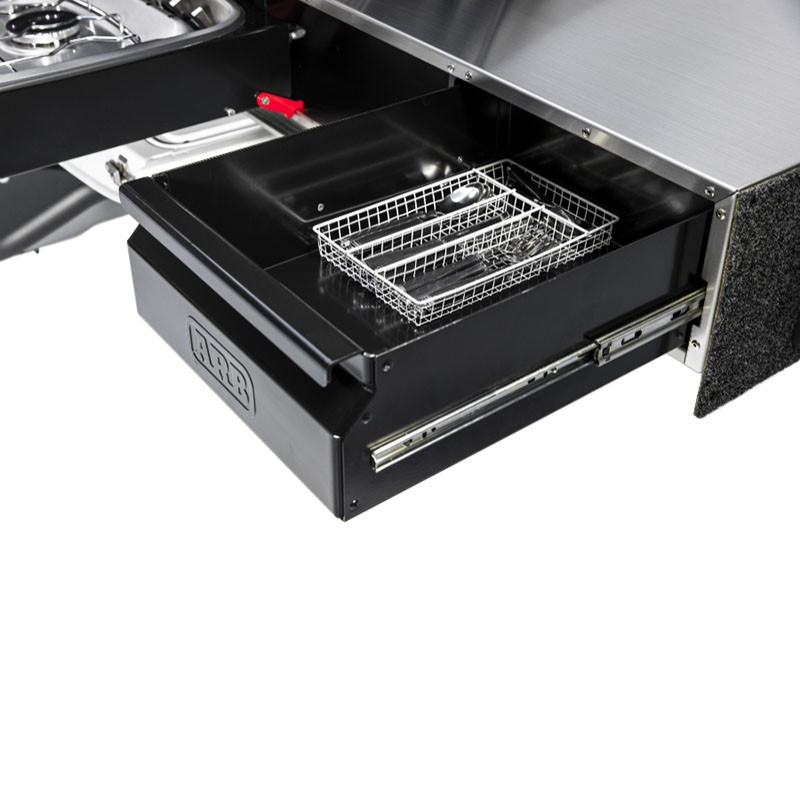

UTENSILS DRAWER

Internal space measures 450mm (d) x 345mm (w) x 140mm (h)
Convenient space to store your gas hose and collapsible sink
Note: utensils rack is not included.

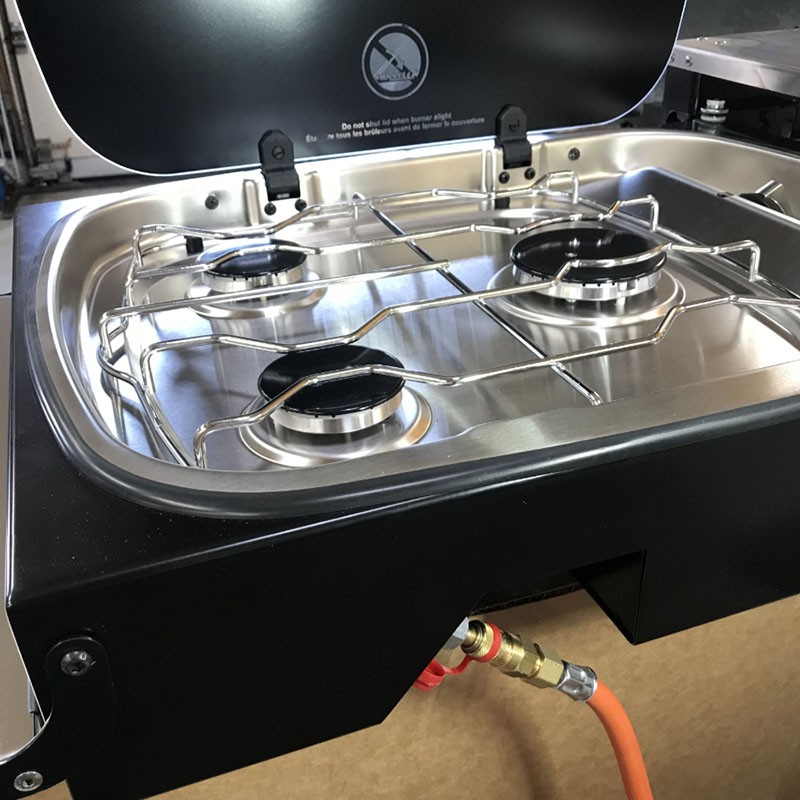

3 BURNER GAS STOVE

Thetford Argent 3 burner MK3 stove
One large 2.5kW rapid burner and two smaller 1.5kW burners
Battery-powered (electric ignition) igniter (18,767BTU) cooking power
Toughened glass lid also doubles as a splashback while the stove is in use
Recessed stainless-steel dish for wind protection and easy clean-up
Automatic ‘flame-out’ safety function instantly cuts the gas and flame if the lid is closed or the flame is extinguished

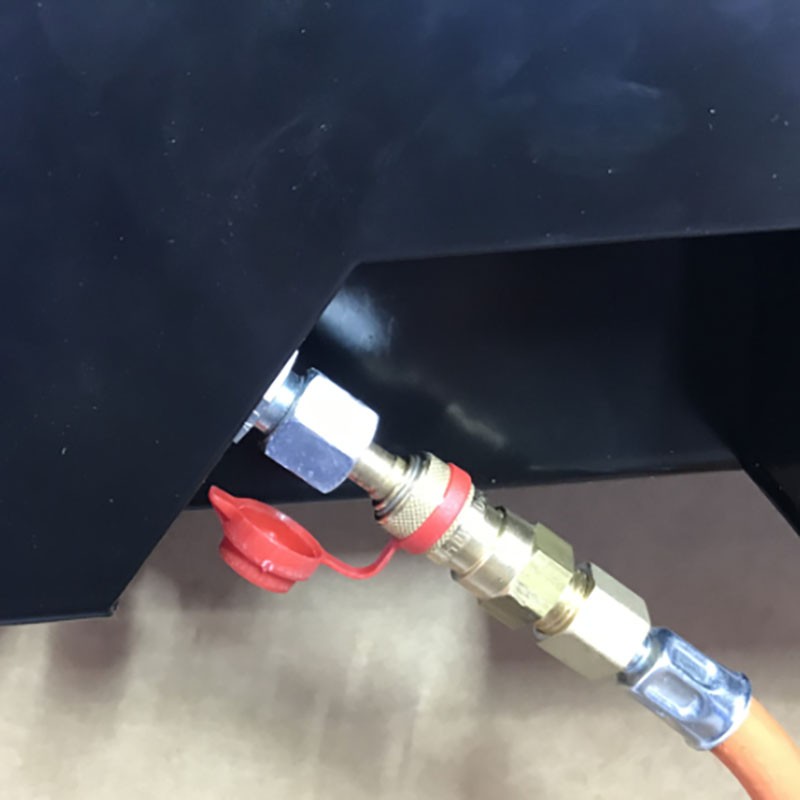

Gas delivered via a quick-connect bayonet gas connector. A 2m quick-connect bayonet POL fitting with regulator included
20kg loading
Suitable gas: LPG and ULPG

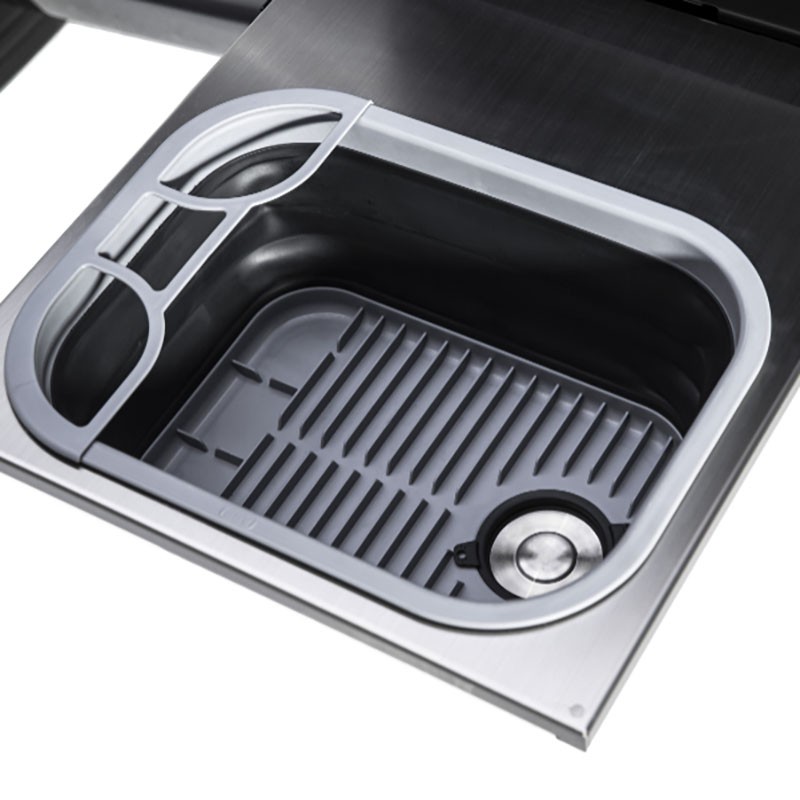

7L COLLAPSIBLE SINK

12L collapsible silicone sink with plug.
Includes dish drying base (15kg sink loading, rated to 90°C)
Sink platform rated to hold total of 15kg (maximum)
Can be stored in the utensils drawer when collapsed
Includes utensils holder
