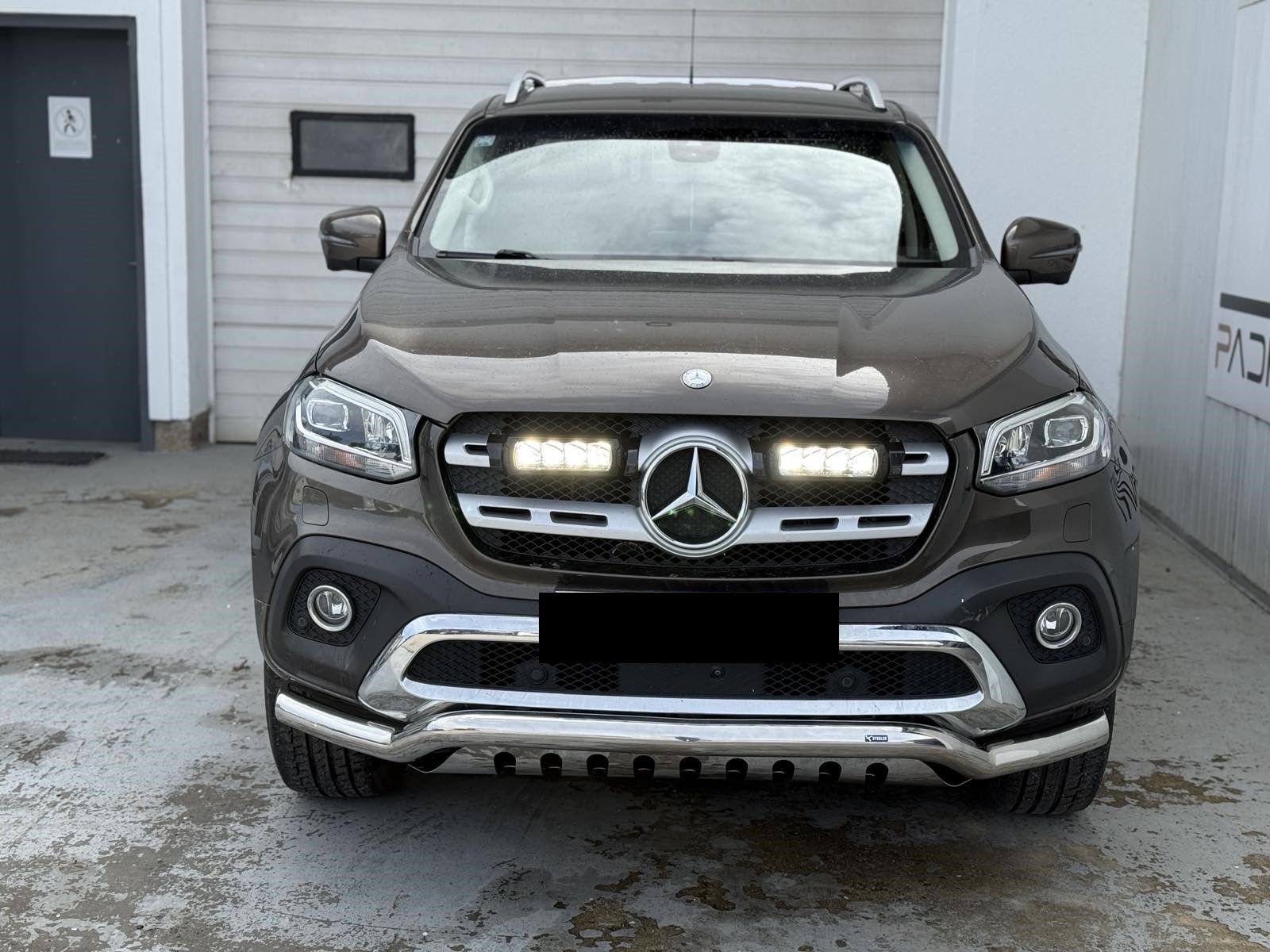

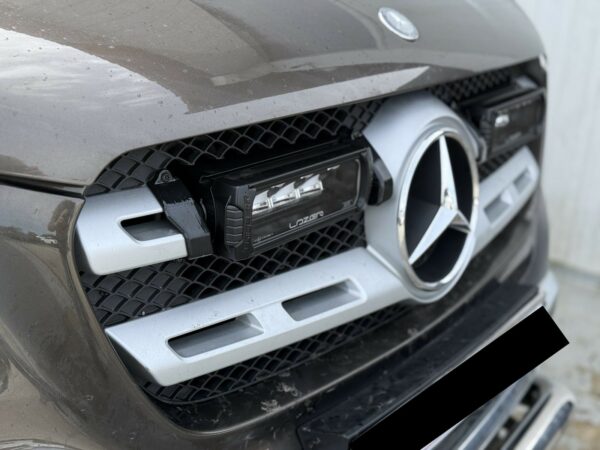

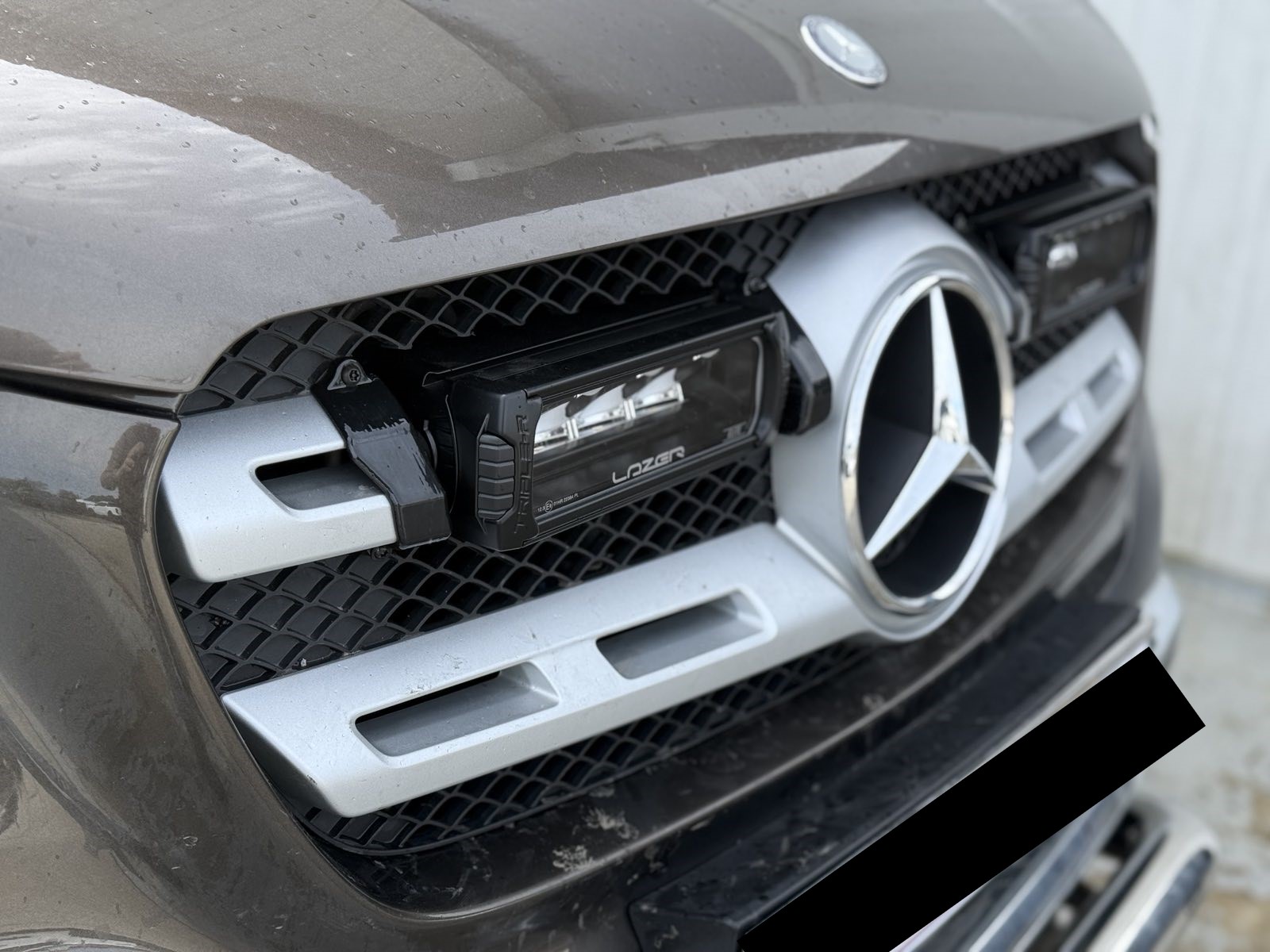

Lazer Lamps Grille LED light set – Gen2 Elite – X220d, X250d – X-Class 2017+

Behind every photo is our work and effort, which must be respected. Our photos are protected by copyright and are not free to use. Use of our photos requires our approval. Photos that are not our property we have permission for them.
(Act on copyright and related rights)

An economical solution for everyday road use.



Technical data (2x Triple-R 750 Gen2 Elite):E-BoostE-Mark Mode
Voltage Range10-32V10-32V
LED Life50,000 hours50,000 hours
Weight1 kg1 kg
High beam function
Total Luminous Flux10136 Lm2534 Lm
Colour Temperature5000k5000k
Number of High Output LEDs2 x 42 x 4
Power Consumption88 Watts23 Watts
Current Draw (at 14.4V)6.2 Amps1.6 Amps
High BeamN/AECE R112
E-Mark RefN/A12.5 x2
Photometric data
0.25 lx Line1360 metres605 metres
0.5 lx Line955 metres430 metres
1 lx Line675 metres305 metres
3 lx Line390 metres175 metres
Beam spread
Horizontal42 degree spread42 degree spread
Vertical13 degree spread13 degree spread








860,00  (without VAT 688,00 )




• Bespoke vehicle integration kit for Lazer LED Spotlight installation
• Custom fit for Mercedes X-Class (MY 2017+)
• Compatible only with X220d and X250d
• Available with: Triple-R 750 High Performance LED Spotlights
• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Cutting guides included
• Brackets made from high strength, UV -stable, ASA material
• Fully road-legal
• 5-year warranty
• Made in Britain

What’s included:

• x2 Triple-R 750 Gen2 Elite LED Spotlights
• x1 Mounting Kit (comprising 4x Brackets and fasteners)
• x1 Two-Lamp Wiring Kit
• x1 Installation Instructions



Delivery is charged for EU countries.  Before sending the package, we additionally check the delivery price. In case of additional shipping costs, we will inform the customer and send an offer.
